How a Browser Works

What really happens after you type a URL and press Enter?
Most of us never think about it. The page just… appears.
But behind that single click, your browser performs many smart steps in just a few milliseconds.
Think of this as a behind-the-scenes story of your browser.

1. What Is a Browser (Beyond “It Opens Websites”)?

A browser is not just a website opener.

A browser is a translator + painter + manager,it does all this work :

• It fetches data from the internet

• Understands HTML, CSS, and JavaScript

• Decides how everything should look

• Draws pixels on your screen

it can be said as :A browser converts code into something humans can see and interact with.

Examples of browsers: Chrome, Firefox, Edge, Safari.

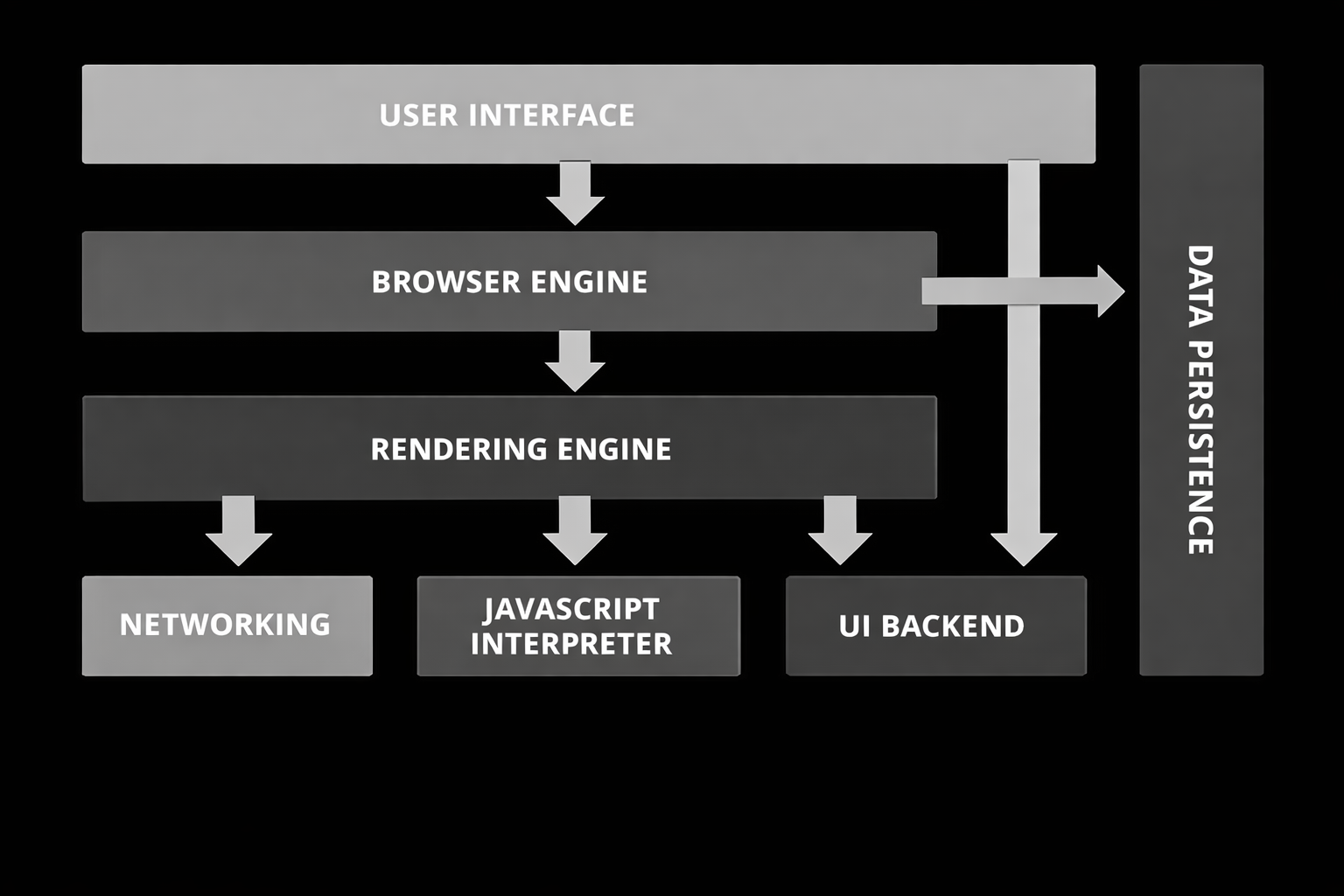

2. Big Picture: Main Parts of a Browser

At a high level, a browser is made of multiple components working together, like a team.

1. User Interface (UI)

This is the part you see and touch:

• Address bar

• Tabs

• Back / forward buttons

• Reload button

• Bookmarks

When you type a URL or click a link, the UI sends that request inside the browser.

2. Browser Engine (The Coordinator)

Think of this as like the manager.

• It takes instructions from the UI

• Decides what needs to happen next

• Talks to networking, rendering engine, and JavaScript engine

It doesn’t draw anything itself — it controls the flow.

Example of Browser Engines:

• Blink (used in Google Chrome & Microsoft Edge)

• Gecko (used in Mozilla Firefox)

• WebKit (used in Safari)

3. Rendering Engine (The Painter )

The rendering(display) engine:

• Reads HTML and CSS

• Builds visual structures

• Draws the page on your screen

It Turn code into pixels,

4. JavaScript Engine

This engine:

• Reads JavaScript

• Executes logic

• Changes the page dynamically

• Examples of JavaScript Engines

  • V8 → Used in Google Chrome & Node.js

  • SpiderMonkey → Used in Firefox

  • JavaScriptCore → Used in Safari

For example:

document.getElementById("btn").innerText = "Clicked";

The JS engine runs this code and updates the page.

5. Networking

This part handles internet communication.

Its job:

• Find the server

• Send requests

• Receive HTML, CSS, JS, images, fonts

Without networking componet , the browser would have nothing to display.

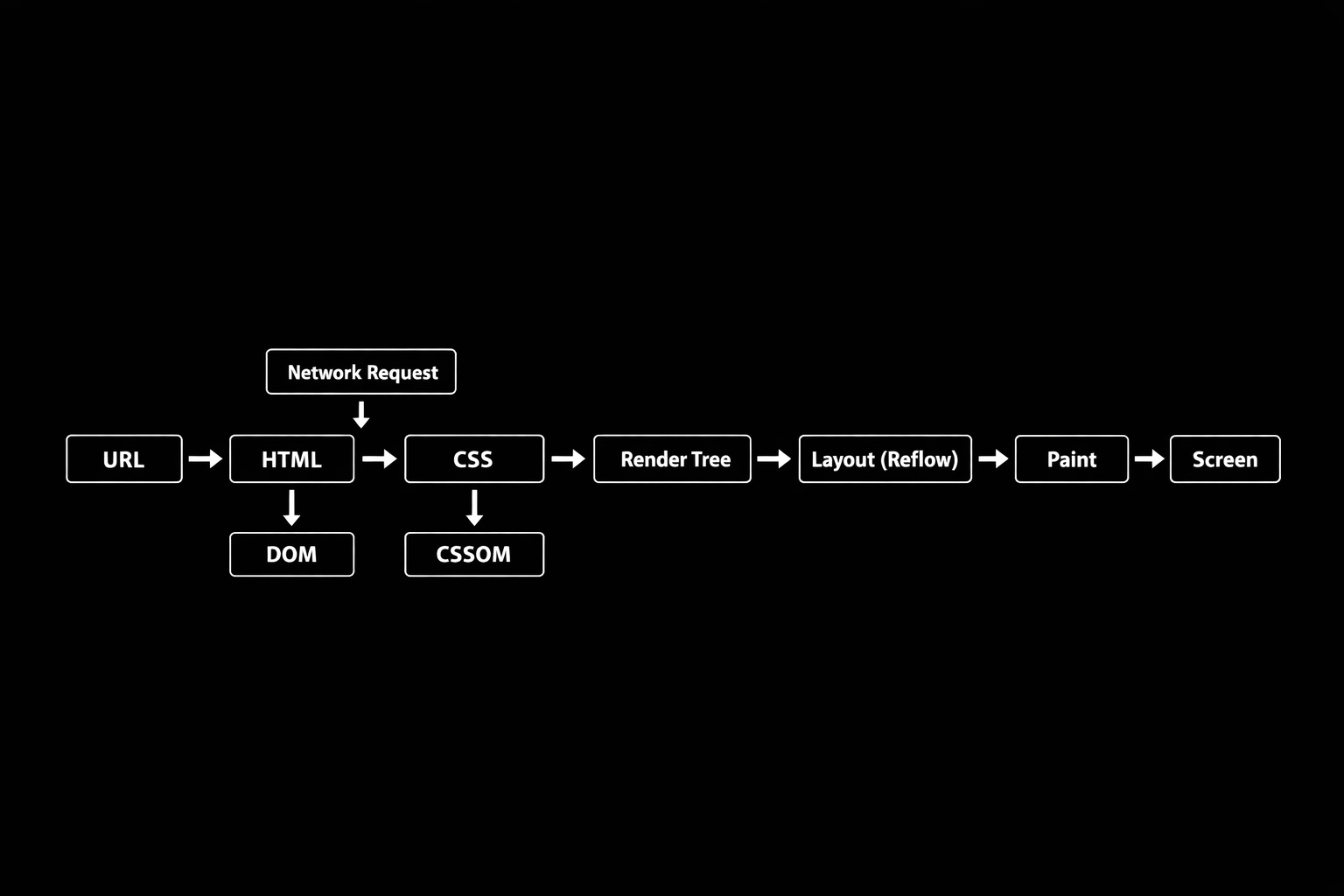

3. Full Flow: From URL to Pixels :

Step 1: You Type a URL and Press Enter

Let’s follow the real flow.

1. You type https://example.com

2. Browser checks:

   • Is this page cached? (meaning : is the A record present in local store )

3. If not:

   • It asks DNS: “Where is this website?”

4. DNS resolver returns an IP address

5. Browser connects to the server

6. Browser sends an HTTP request: GET /index.html

7. Server responds with HTML

Step 2: HTML Parsing → DOM Creation

As soon as HTML starts arriving, the browser does not wait for the full file.

It starts reading line by line.

What is Parsing?

Parsing means: Breaking text into meaningful structure.

DOM (Document Object Model)

The browser converts HTML into a tree structure called the DOM.

Example HTML:

<!DOCTYPE html>
<html>

<head>
    <title>My title</title>
</head>

<body>
    <a href="#">My link</a>
    <h1>My header</h1>
</body>

</html>

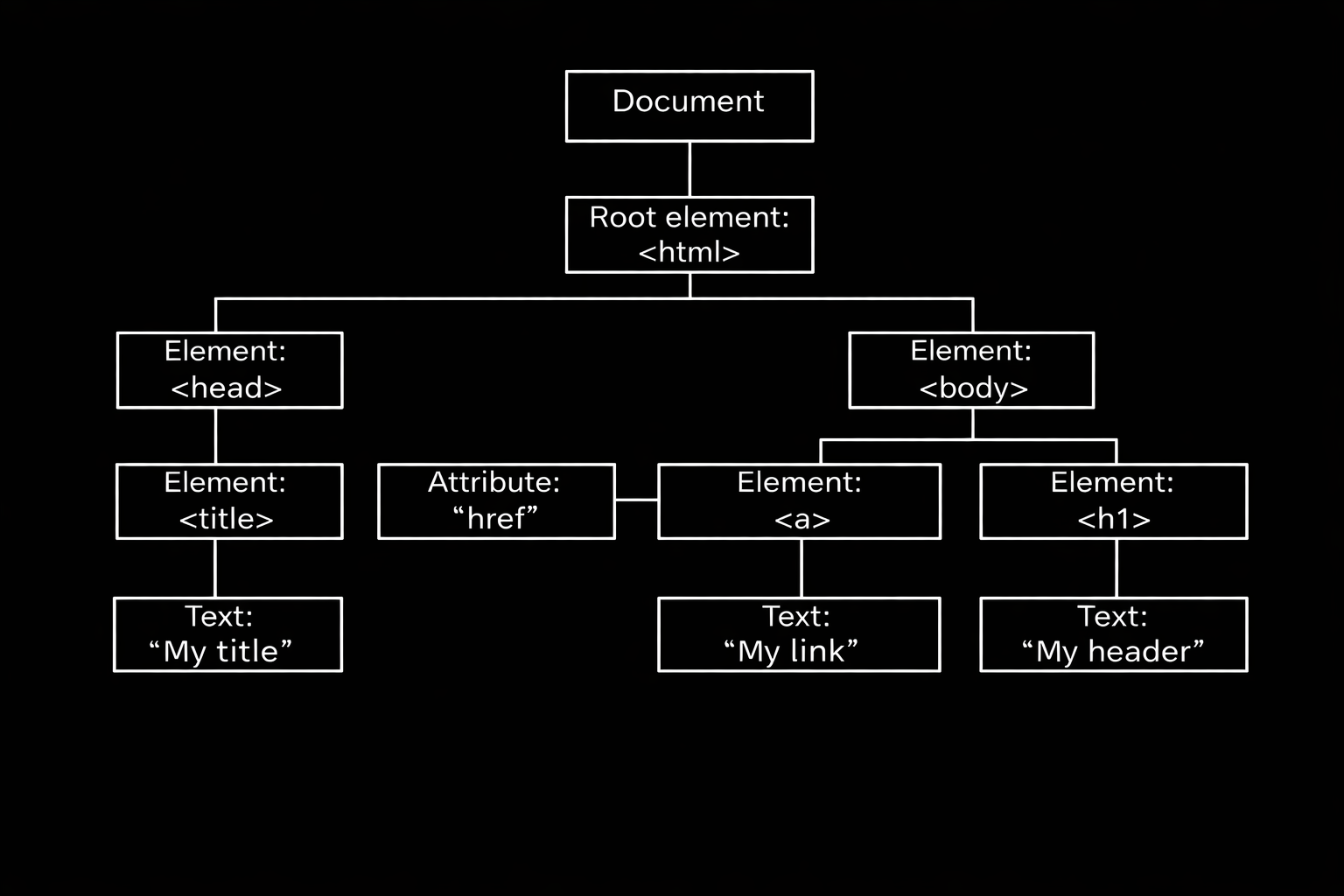

DOM Tree:

Step 3: CSS Parsing → CSSOM Creation

Now CSS comes into play.

Example CSS:

h1 {
  color: blue;
}

The browser parses CSS and creates the CSSOM
(CSS Object Model)

CSSOM stores:

• Which styles exist

• How they cascade

• Which rules apply to which elements

Think of CSSOM as: A rulebook that tells the browser how things should look

Step 4: DOM + CSSOM → Render Tree

Now the browser combines both worlds.

• DOM → structure

• CSSOM → styling

Together they form the Render Tree.

Important:

• Only visible elements go into the render tree

• display: none elements are skipped

Render Tree knows:

• What to show

• How it should look

Step 5: Layout (Reflow)

Now the browser asks: “Where should everything go?”

Layout decides:

• Width and height of elements

• Position on the screen

• Spacing, margins, padding

This is why changing CSS like width or margin can be expensive — it may trigger reflow.

Step 6: Paint → Display

Finally…

• Browser paints pixels

• Text, colors, borders, images

• Layers are combined

• Page appears on your screen

Boom — website loaded!

All this happens in milliseconds.

4. What About JavaScript?

JavaScript exists because it can:

• Modify the DOM

• Change styles

• Trigger reflow and repaint

<script> can pause HTML parsing
(unless async or defer is used).

Why?
Because the browser must download and execute JS before continuing.

JS runs on the main thread, so heavy scripts can slow down rendering.

5. Parsing Explained with a Simple Example

Take this math expression:

(7 + 3) * (5 - 2)

It becomes a tree:

        *
      /   \
     +     -
    7 3   5 2

HTML parsing works the same way:

Break the text.

Understand the structure.

Build a tree.

DOM and CSSOM are just trees built from code.

6. Final Summary:

We don’t need to memorize everything.

Just remember the flow:

Fetch (Browser fetches the file using HTTP with the help of DNS)
→ Parse (HTML → DOM, CSS → CSSOM)
→ Render (Create Render Tree → Reflow → Paint)
→ Display (Final output appears on the screen)
